Molecor, in its continuous commitment to providing the most advanced solutions for the conveyance of water under pressure, has recently incorporated new references to its range of ecoFITTOM^® Oriented PVC fittings that will contribute to significantly increase the possibilities in the design and execution of networks.

In this range extension there are DN125, DN140 and DN225 mm fittings in all the figures already manufactured by Molecor: 11.25º elbows, 22.5º elbows, 45º elbows, 90º elbows, reducers, couplers and sliding couplers.

With the ecoFITTOM^® fittings, unique in the world in PVC-O, Molecor offers a continuous system in this material; a continuity that guarantees the same hydraulic and mechanical properties in the different elements of the network, in the pipes as well as in the fittings, thus ensuring the total quality of the transported water.

The excellent mechanical properties of PVC-O provide ecoFITTOM^® fittings and TOM^® pipes with a significantly larger inner section than other fittings and pipes made of alternative materials with the same mechanical requirements.

In addition to this, PVC-O pipes and fittings do not need any type of external or internal protection against corrosion, contrary to what can happen with metal fittings, which makes their manufacturing cost lower.

On the other hand, no heavy machinery is needed for their installation. Thanks to the lightness and manageability of ecoFITTOM^® fittings, conferred by their excellent physical and mechanical characteristics, they can be manually installed up to DN315 mm (12”), a fact that contributes to considerably reduce installation times and costs.

These fittings can be used in networks for the transport of drinking water, irrigation systems, industrial applications, reclaimed water, fire extinguishing networks, etc. among other applications.

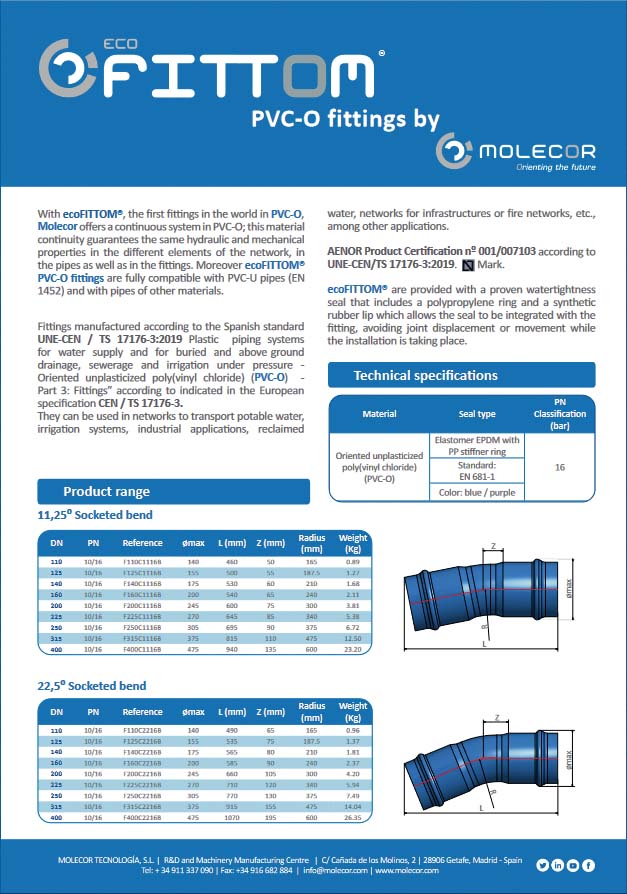

You can find this and other features in the leaflet below as well as the updated range of ecoFITTOM^® fittings:
