PVC-O TOM® Class 500 pipe, the widest range of diameters and pressures, only the maximum degree of orientation

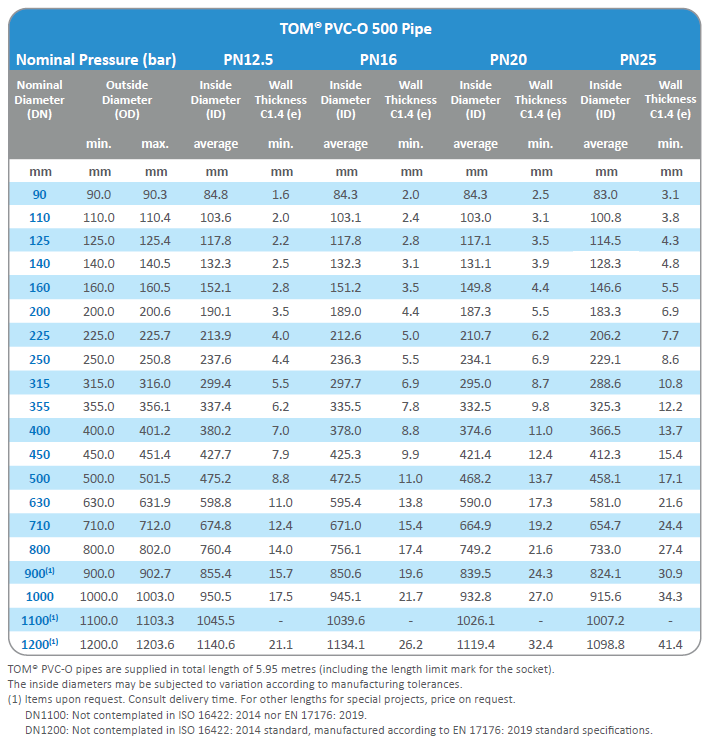

The TOM® PVC-O pipe has a wide range able to cover all the needs of medium and high pressures. TOM® is manufactured in nominal diameters (DN) 90, 110, 125, 140, 160, 200, 225, 250, 315, 355, 400, 450, 500, 630, 710, 800, 900, 1000, 1100 and 1200 mm and pressures (PN) 12.5, 16, 20 and 25 bars.
It is supplied in total length (including socket length) of 5,95 m, but other lengths for special projects may be considered.
TOM® PVC-O pipes are manufactured in accordance with UNE-EN 17176:2019 standard, applied to “Plastic piping systems for water supply and for buried and above ground drainage, sewerage and irrigation under pressure- Oriented unplasticized poly(vynil chloride) (PVC-O). Part 1: General, Part 2: Pipes and Part 5: Fitness for purpose of the system” (based on European Standard EN 17176) and also according to the International Standard ISO 16422:2014, applied to “Pipes and joints made of oriented unplasticized poly(vinyl chloride) (PVC-O) for the conveyance of water under pressure”.

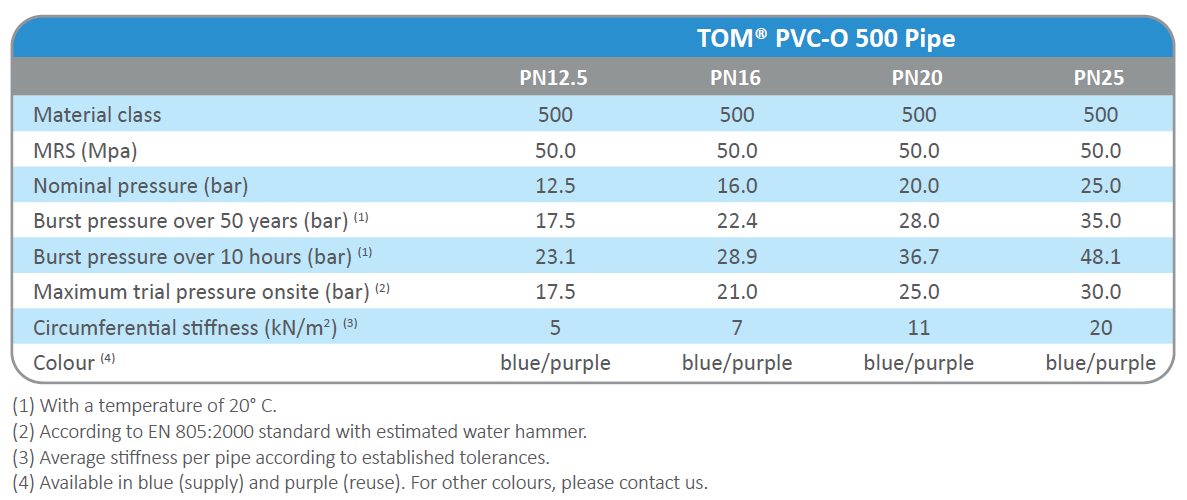

TOM® is only manufactured in the highest Molecular Orientation class (PVC-O Class 500) since with its highest orientation degree it guarantees better mechanical behavior.

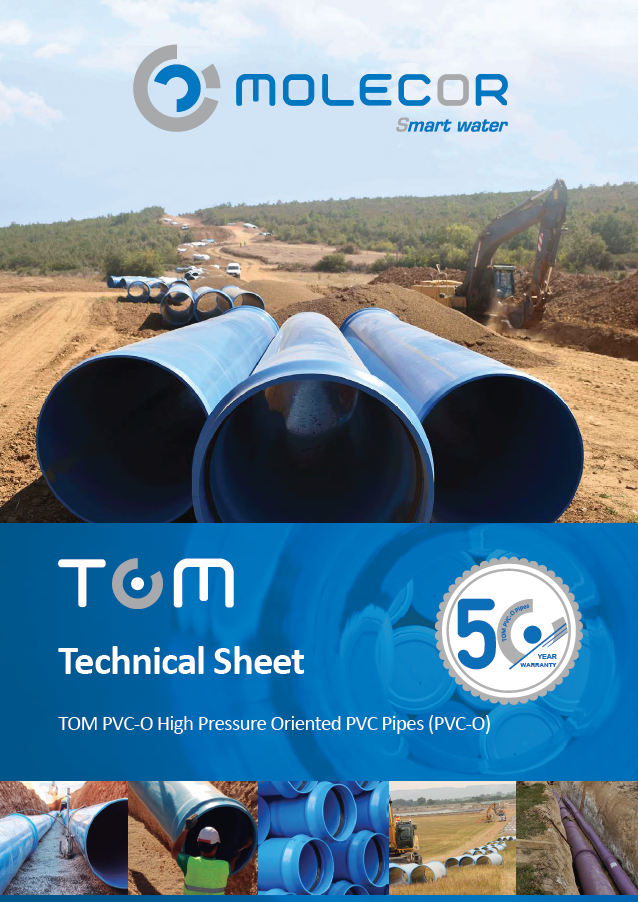

Further information and details about TOM® PVC-O pipe, please have a look at our catalogue and technical brochure.

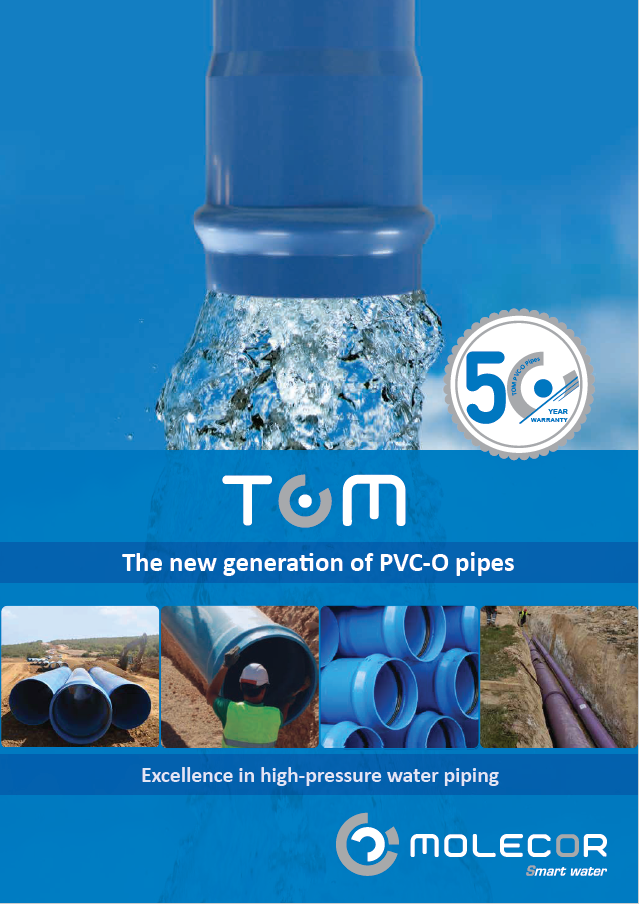

You can also view the TOM® catalog in PRESTO format
